Vertical portal centers

Decades of experience in the construction of vertical machining centres have led to this new machine concept. The gantry design offers highest rigidity and accuracy for surface milling. The two work tables enable a very efficient pendulum machining, and by synchronisation of the two Y-axes also the machining of long parts.

The large traverse paths of the Y-axes do not affect the accuracy of the machining geometry at any position of the tables.

View product examples

Customer benefits

  • Customized modular design / modular configuration
  • Highest accuracy
  • Rotary indexing tables
  • NC rotary tables as 4th and 5th NC axis
  • Machine roof solution for convenient crane loading
  • Tool monitoring
  • Motor spindle for high speeds
  • Linear drive for the X-axis
  • Automatic clamping device for various components
  • Machine examples

Work pieces

Machining of:

  • Lifting profiles for forklifts
  • Hardox material
  • Clamping bars for offset printing machines

Machine examples

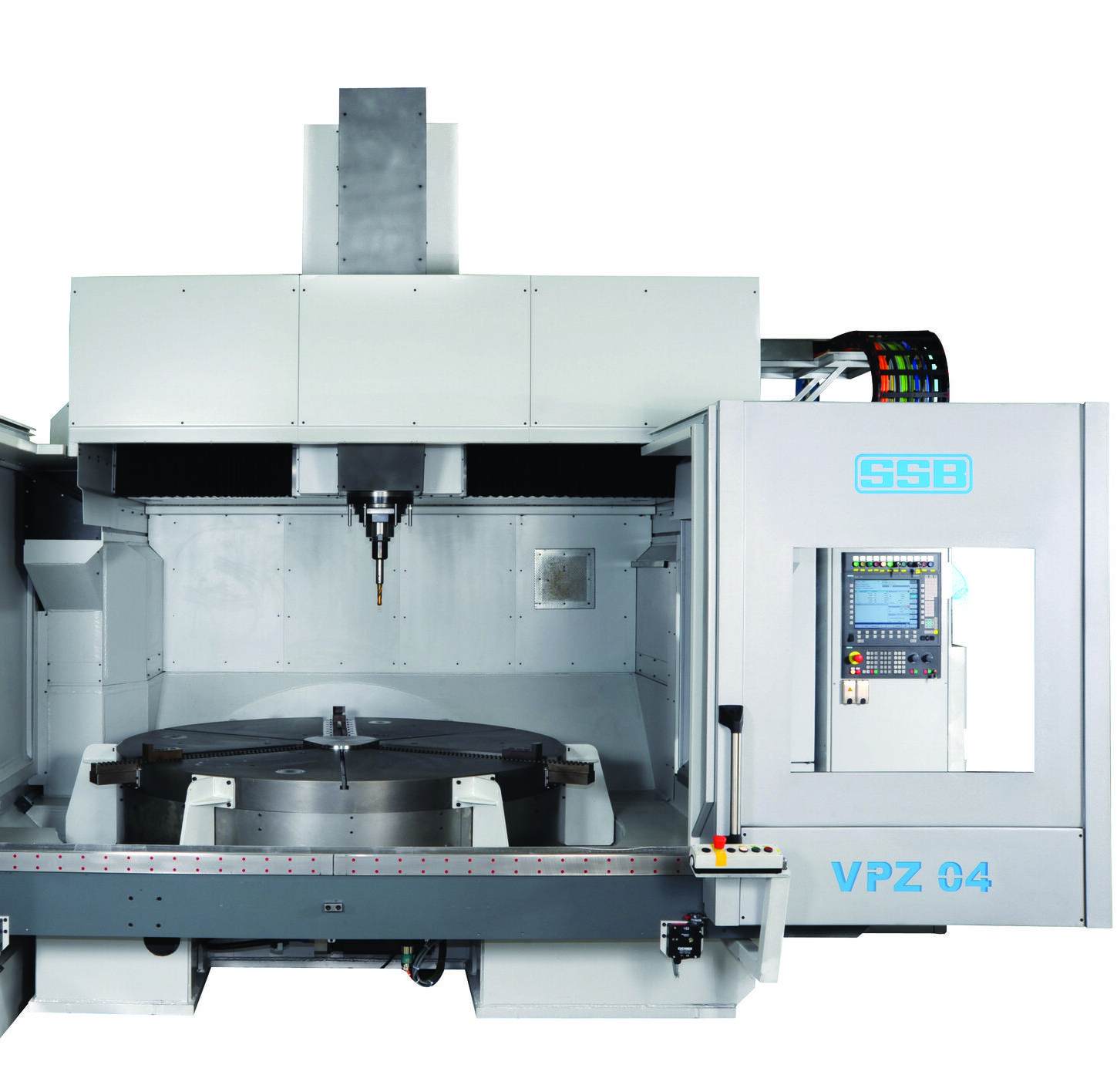

Model VPZ04 - with rotary table

Modell VPZ04
with rotary table

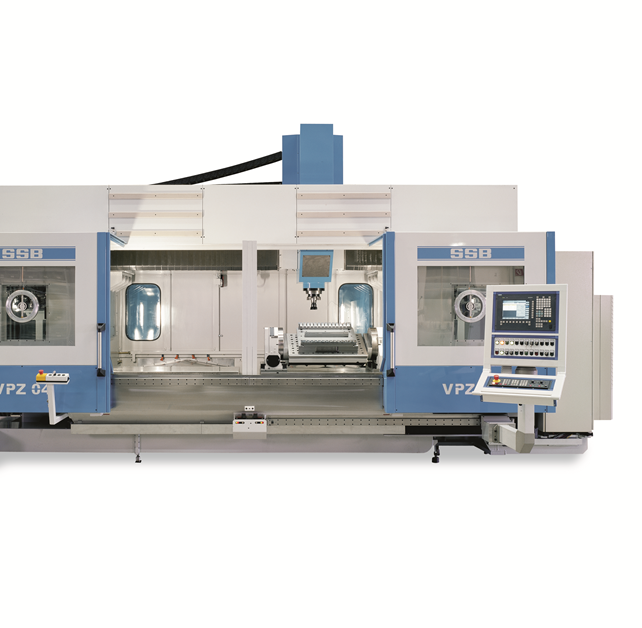

Model VPZ04 - 2 working areas for pendulum machining and integrated swivel table

Modell VPZ04
2 working areas for pendulum machining and integrated swivel table

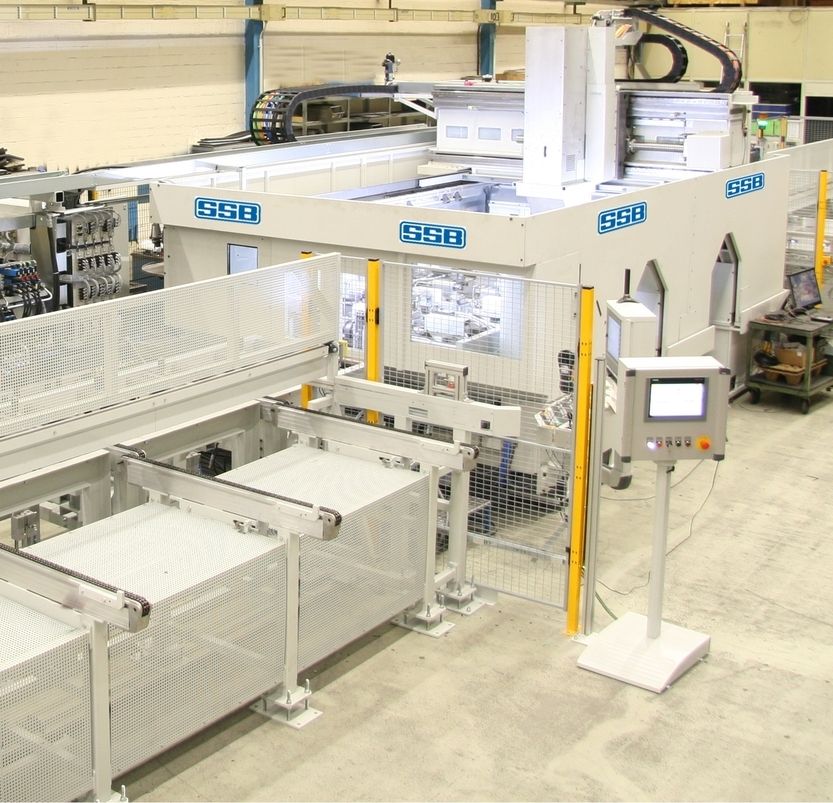

Model VPZ04 - with integrated conveyor technology within the machining area, as well as a conveyor for in-feeding and conveyor for out-feeding of the forklift profile work pieces

Model VPZ04
with integrated conveyor technology within the machining area, as well as a conveyor for in-feeding and conveyor for out-feeding of the forklift profile work pieces

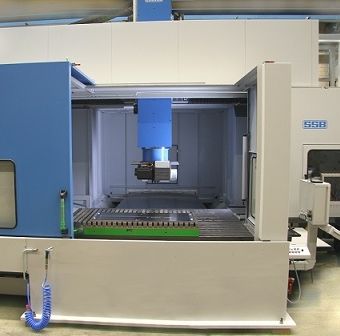

Model VPZ05 - with integrated magnetic clamping table and completely exchangeable 5-axis milling head

Model VPZ05
with integrated magnetic table and interchangeable 5-axis milling head

Configuration possibilities

  • Wide range of flexibly dimensionable table concepts: rotary tilt tables, rotary tables, double tilt tables, indexing tables, tables for turning, stationary concepts, linear concepts
  • Diverse spindle concepts: conventional with manual gearbox, motor spindles, VH head concepts, orthogonal head concepts, turret head concepts
  • Coordinated tool change concepts from pick-up solutions to double grippers with rotary table to chain magazine or rack system concepts with feed units
  • Modular machine design by combining components such as table concepts and number of spindles
  • Cooling: Internal and external cooling or internal and external minimum quantity lubrication Tool holding fixtures for all HSK, SK and CAPTO interfaces can be implemented Integration capability in automated production lines
